"How-To" Tutorials: How to connect Auvik to Ubiquiti devices using SNMP v3 to UniFi controller



Auvik Support provides this How-To article to connect to Ubiquiti devices through the Unifi controller using SNMP v1:

https://support.auvik.com/hc/en-us/articles/360000842663-How-to-enable-SNMP-on-Ubiquiti-devices-using-the-UniFi-controller



But what what if you have a security need to use SNMP v3

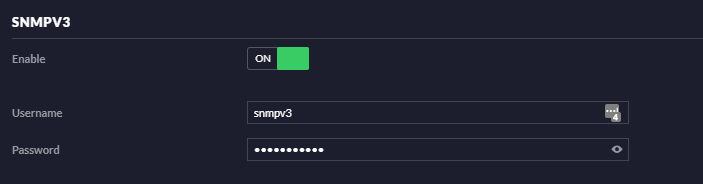

Unfi just gives simple Username and Password fields:

Unifi SNMPv3

I could not find an Auvik document on the matter, but this Ubuqiti Community post led me in the right direction:

https://community.ui.com/questions/Unifi-SNMPv3-authorization-error/58da50b6-668f-4982-8bdc-e008c524f662

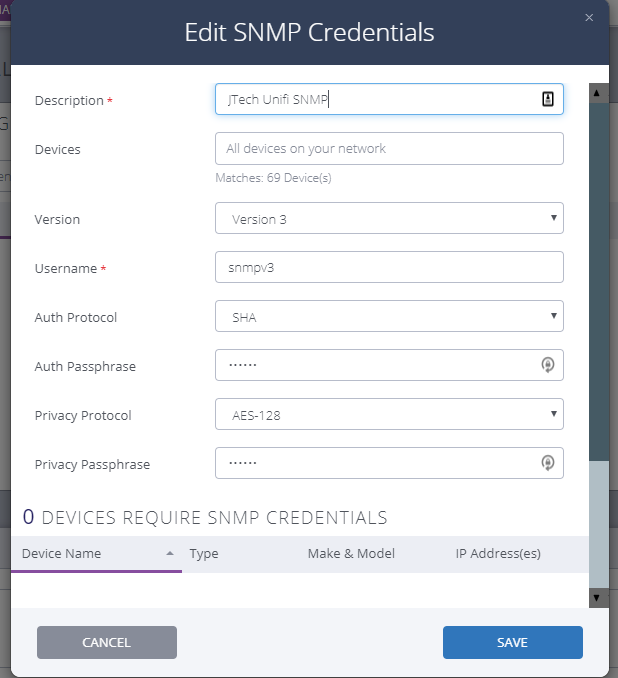

So, that gave some good info that it was SHA and AES (unspecified).  With some playing around, I found it's SHA and AES-128 with the Auth and Privacy Passhrase being the same:

Auvik SNMP v3

We just used an SNMP username of snmpv3 but you can use your own preference.

Once you've given Auvik time to retry the authentication, it connects!

Auvik SNMPv3



Hope this helps you out!





This article viewed 11986 times as of 12/12/2024 --- First published on 01/26/2020 --- Last modified on 01/26/2020
